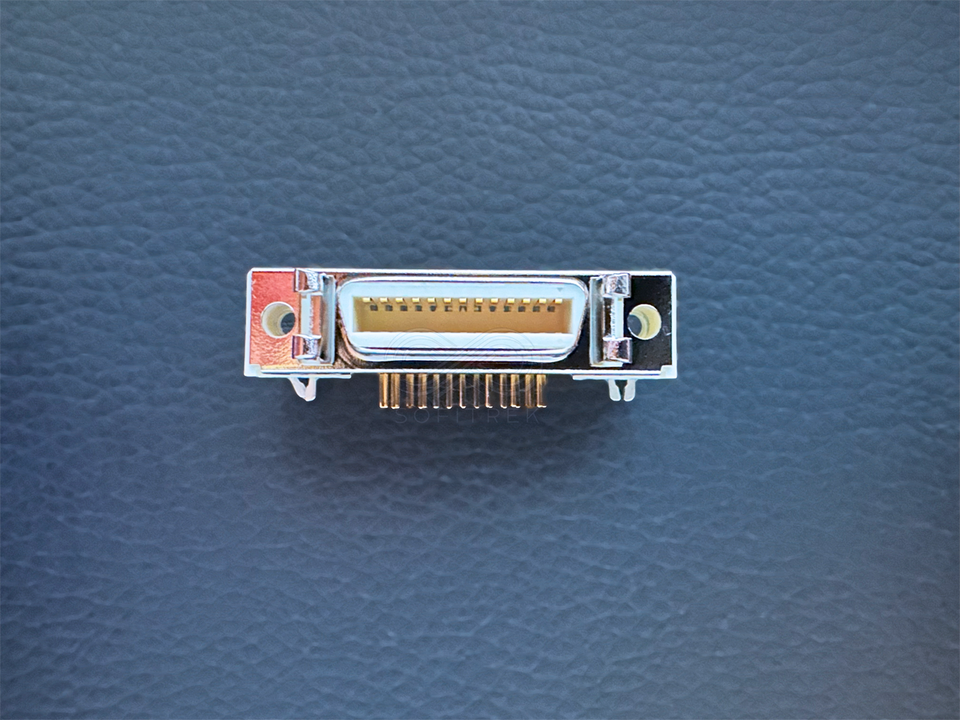

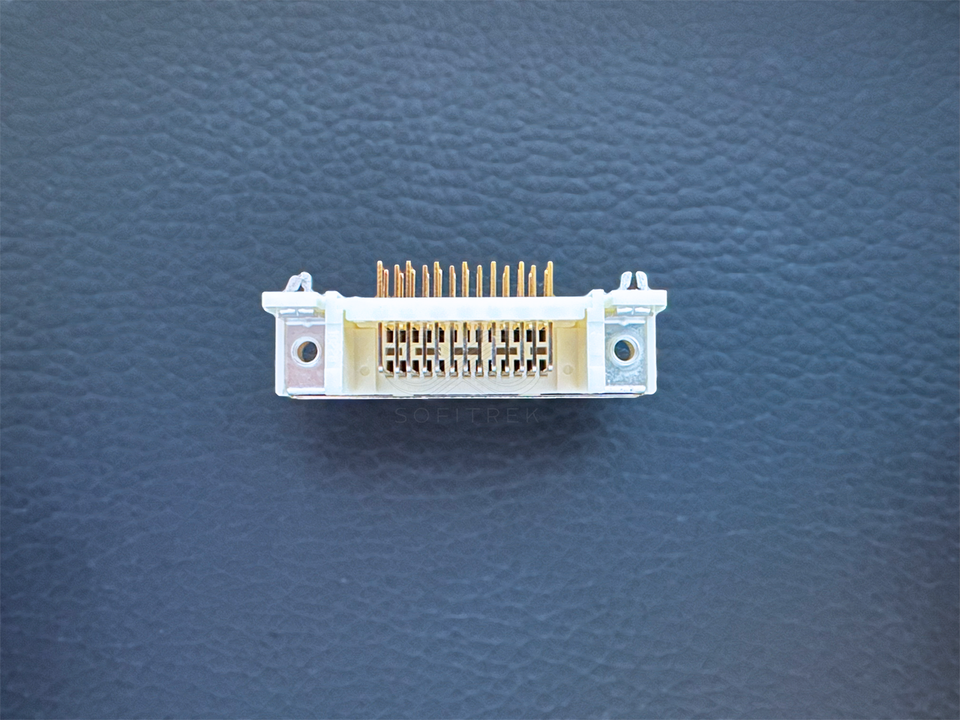

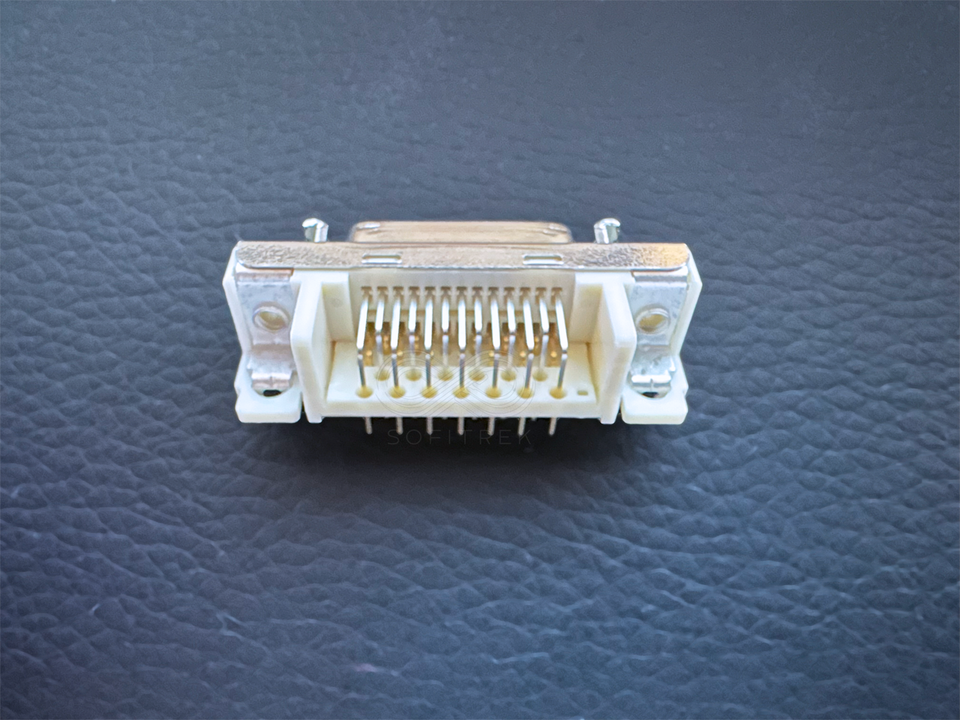

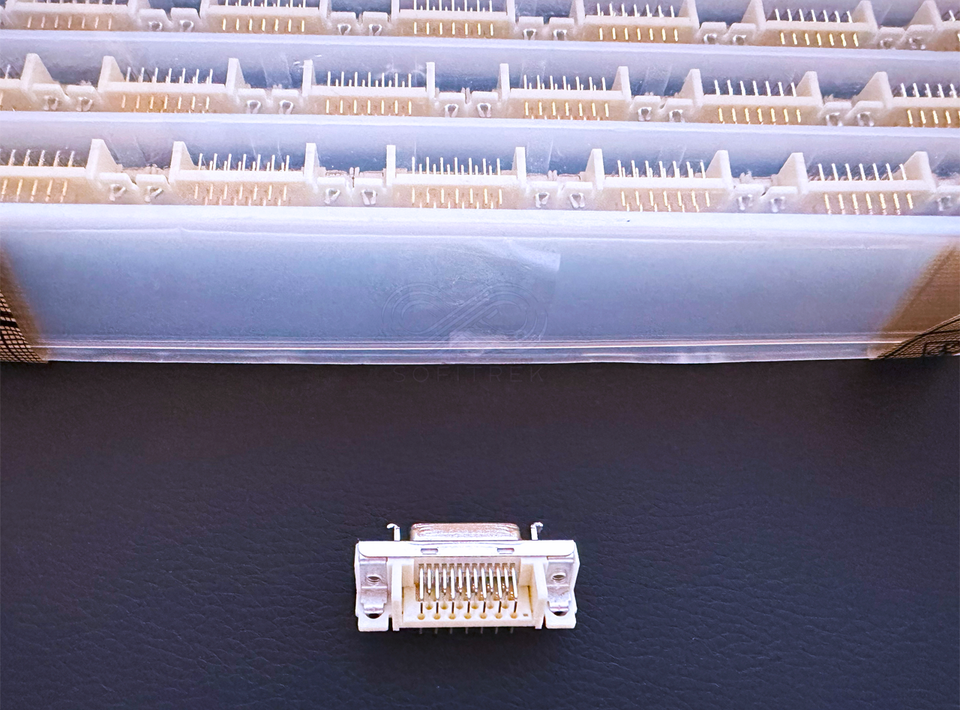

Store Seller Profile Feedbacks Contact Connectors Terminal Blocks D-Sub Connectors close 1X 10226-55G3PC 3M 26 Position Mini D Ribbon Connector Boardmount Gold Contact Ready to Ship Ask a Question 30-Day Return Description Specifications Shipping Return Policy Disclaimer 1 Unit of 10226-55G3PC 3M 26 Position Mini D Ribbon Connector Boardmount Gold Contact Specification Total Number of Contacts 26 Number of Rows Loaded 2 Terminal Pitch 2.54 mm Number Of PCB Rows 4 Rated Current (Signal) 1 A Contact Gender FEMALE Mounting Type BOARD AND PANEL Insulator Material GLASS FILLED POLYCYCLOHEXYLENE TEREPHTHALLATE Shell Material GLASS FILLED PCT Contact Finish Mating GOLD (30) OVER NICKEL (100) Mounting Style RIGHT ANGLE Connector Type OTHER D TYPE CONNECTOR Additional Feature 3M, SHIELDED Dielectric Withstanding Voltage 500VAC V Filter Feature NO Insulation Resistance 500 M? DIN Conformance NO IEC Conformance NO MIL Conformance NO Reference Standard UL UL Flammability Code 94V-0 Operating Temperature-Min -55 C Operating Temperature-Max 105 C Body/Shell Style RECEPTACLE Contact Finish Termination GOLD OVER NICKEL Contact Material COPPER ALLOY Contact Pattern RECTANGULAR Empty Shell NO Insulator Color BEIGE Mating Contact Pitch 0.05 inch Mixed Contacts NO Mounting Option 1 M2.5 Mounting Option 2 THREADED Option GENERAL PURPOSE PCB Contact Pattern STAGGERED PCB Contact Row Spacing 1.905 mm Plating Thickness 30u inch Shell Finish NICKEL Termination Type SOLDER Body Breadth 0.37 inch Body Depth 0.45 inch Body Length 1.46 inch Terminal Length 0.11 inch Package Description ROHS COMPLIANT Manufacturer 3M Shipping Policy Our go-to options for small to medium items are USPS Ground Advantage and USPS Priority Mail, known for their reliable tracking and peace of mind. Smaller items might qualify for USPS First Class Mail. Contact us to discuss this option before purchasing. Note: This method is less recommended due to the potential for delays. Return Policy We offer a 30-day return policy, no questions asked. If you choose to provide a reason for the return, it will assist us in improving and fix the issue. Packaging Our items are packaged according to their needs?some in ESD bags with pins secured in protective sponge, others in foam-enclosed boxes. For larger quantities, options include broken tubes for transistors or cartons. We welcome your suggestions for packaging preferences. Sofitrek Product Disclaimer Nature of Goods: All products offered by Sofitrek are surplus items. These products may originate from older batches, series, or have earlier date codes compared to those currently provided by the original manufacturers or their authorized dealers. Non-Affiliation: Sofitrek operates independently and is not an authorized distributor, nor is it affiliated or associated with the manufacturers of the products sold. Consequently, Sofitrek does not represent the manufacturers of these products in any capacity. Exclusion of Manufacturer's Warranty: Since Sofitrek is not an authorized distributor, the original manufacturer's warranties are explicitly not applicable to the products sold. This includes any implied warranties of merchantability or fitness for a particular purpose. Firmware and Software: Some products may include pre-installed firmware or software. However, Sofitrek does not guarantee the presence, compatibility, or the revision level of such firmware or software as suitable for your specific application. Furthermore, Sofitrek expressly disclaims any representation regarding your right or ability to download, obtain, or install any firmware or software for the products from any source, including the original manufacturers or their distributors. Limitation of Liability: Sofitrek shall not be held liable for any form of damages?direct, indirect, incidental, consequential, or otherwise?arising from the use, misuse, or inability to use any product sold. This includes, but is not limited to, damages for loss of profits, goodwill, use, data, or other intangible losses. The buyer assumes all responsibility for the safe and lawful use of the product and agrees to indemnify and hold harmless Sofitrek against any claims, liabilities, or expenses related to the product's use. Compliance and Responsibility: The buyer is solely responsible for adhering to all terms of any End-User License Agreement or similar documentation related to the products, particularly concerning the obtaining, installation, and use of firmware or software. Severability: If any provision of this disclaimer is found to be invalid or unenforceable, the remaining provisions shall continue to be in full force and effect. By purchasing from Sofitrek, the buyer acknowledges having read, understood, and agreed to this disclaimer in its entirety. Links Shop Feedbacks Contact Us Sofitrek
