Lcos display 0.4 inch 1280x960 Micro display and similar items

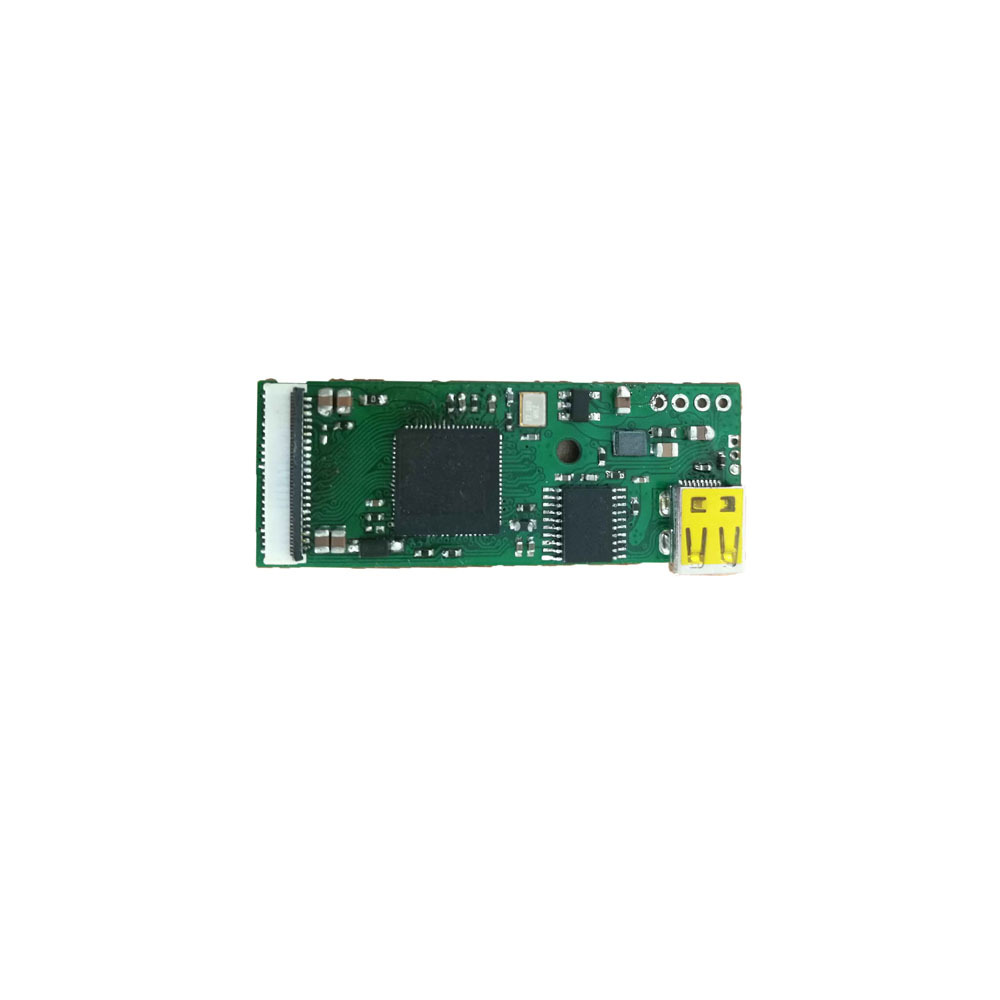

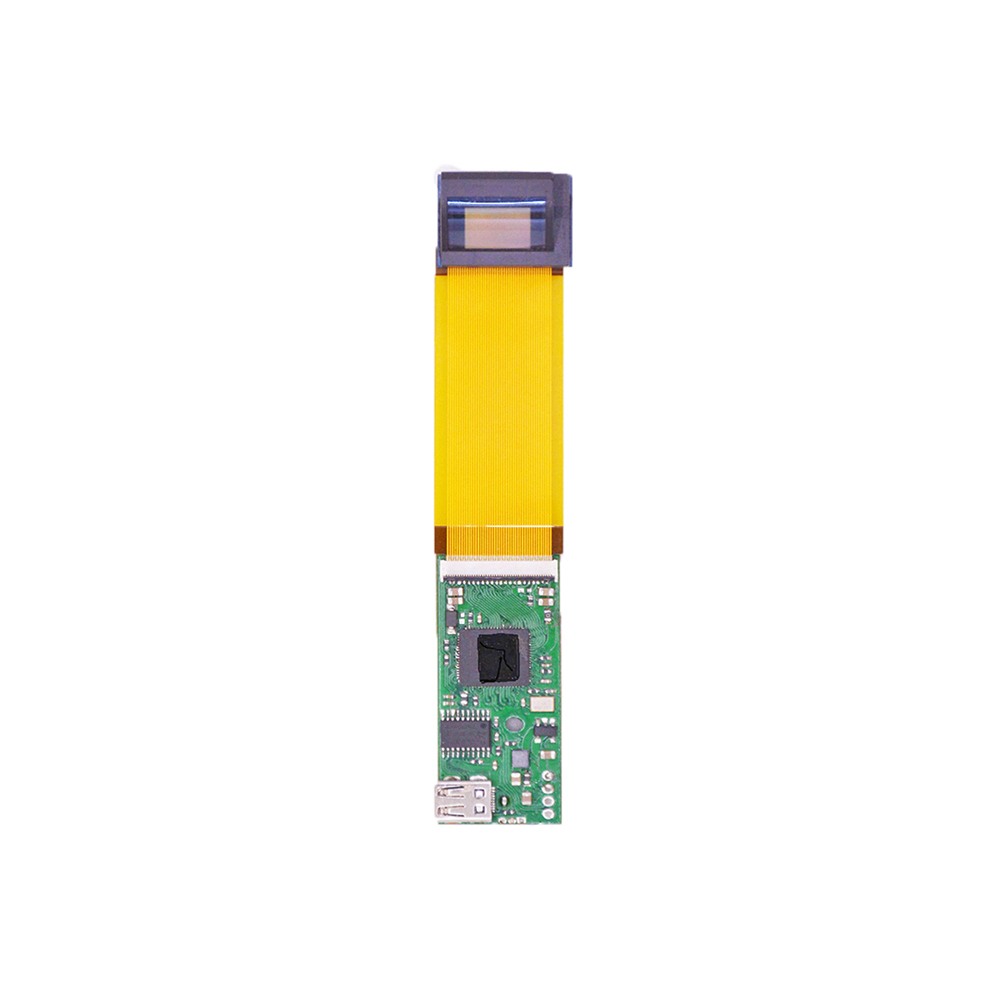

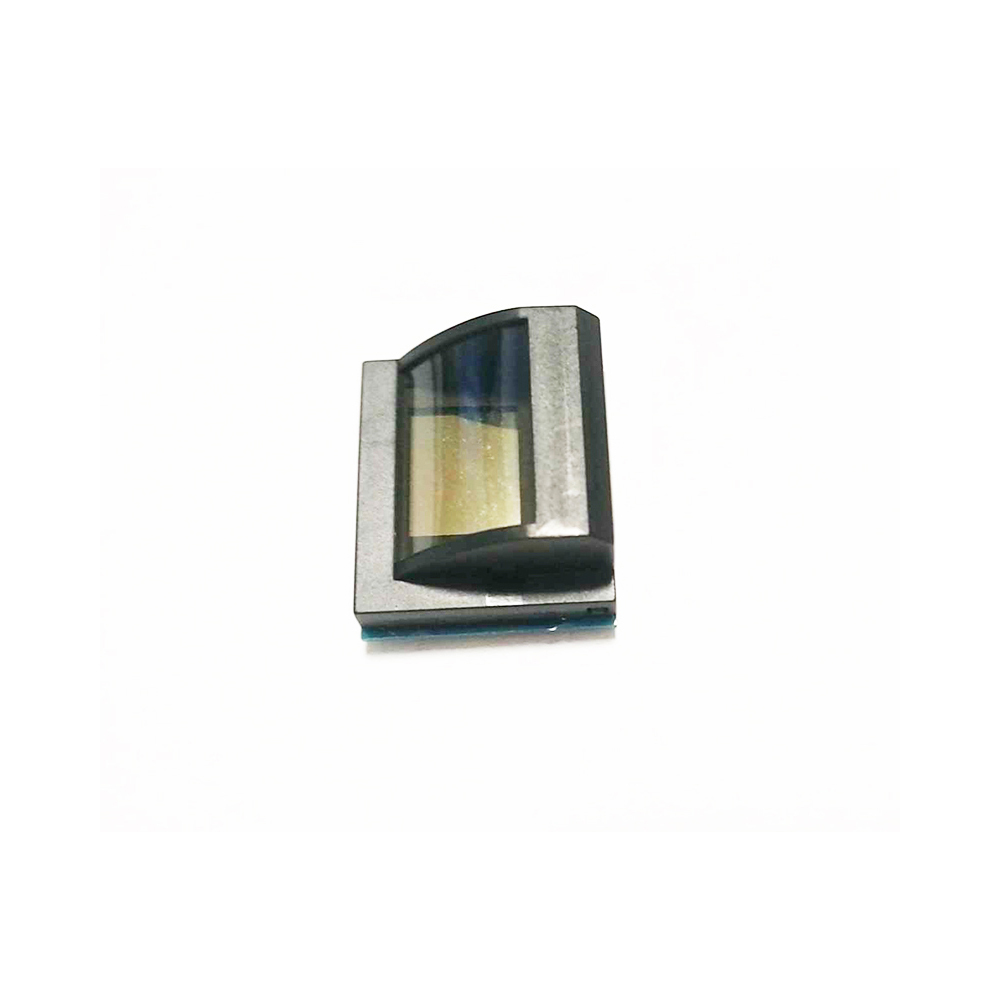

Micro disply 0.4 inch lcos display 1280x960 for EVF Overview: This display module is composed of a FLCOS display screen and a controller board. It has a diagonal 0.38 inch size anda 1280 X720 resolution.It can be powered directly via HDMI-A. If current from HDMI-A is not enough, it can also be powered by external supply. 0.4 inch lcos display 1280x960 parameter Display Technology: Ferroelectric Liquid Crystal (FLC) on reflective CMOS Display Mode:Field sequential color Display Format:Quad VGA : 1,280(H) x 960(V) Display Panel Active Area:8.127 x 6.095mm Display Area diagonal:10.16mm (0.40'') Input Grayscale:256 levels per color (8bits) Color Depth:16.78Million unique colors (RGB888 input) Display Pixel Pitch:6.35um Display Frame Rate:60Hz/540Hz (NTSC), 50Hz/450 Hz (PAL) Typical Brightness:220 cd/m2 (Typical). Contrast Ratio:150:1 (Typical) Digital Display Interface:RGB888 - parallel 24bit/RGB666 - parallel 18bit/RGB565 - parallel 16bit/YCbCr(4:4:4)-parallel/YCbCr(4:2:2)-parallel Operating Temperature:-10? ~ 70? Storage Temperature:-30? ~ 83? 0.4 inch lcos display 1280x960 Features: The display module can reduce customer development time and cost. It has small volume and can be easily applied to customer product development and design. It uses FLCOS (Ferroelectric Liquid Crystal on Silicon) Display technology. Nice display color, high contrast ratio, low power consumption, low cost, clearer and more realistic display effect. Weight: About 5g (screen) Mode of work: Digital Mechanical Drawing Specification for Magnifier Eyepiece 0.4 inch lcos display 1280x960 Applications: The electronic viewfinder of the digital camera / camera Portable civilian equipment such as micro projector, video glasses, head entertainment equipment, 3D display, game helmet and so on. Security monitoring, military use: single soldier helmet display, electronic sight, infrared night vision instrument, thermal imaging display, electronic telescope, aircraft helmet, gun sight, life detection visual device. Medical and industrial applications: man-machine visual engineering research, endoscopy, portable B-ultrasound, vision correction equipment, spectacles, various portable testing equipment Aero model: aerial, remote control aircraft parameter display system, remote control car video display terminal, etc. Minerals: coal exploration, metal mineral exploration Packing Listing: 0.4" lcos display 1280x960: 1pcs HDMI Controller Board: 1pcs HDMI Cable: 1pcs Magnifering prism optics: 1pcs
