DEWENWILS Pool Pump Timer, Mechanical Timer and 26 similar items

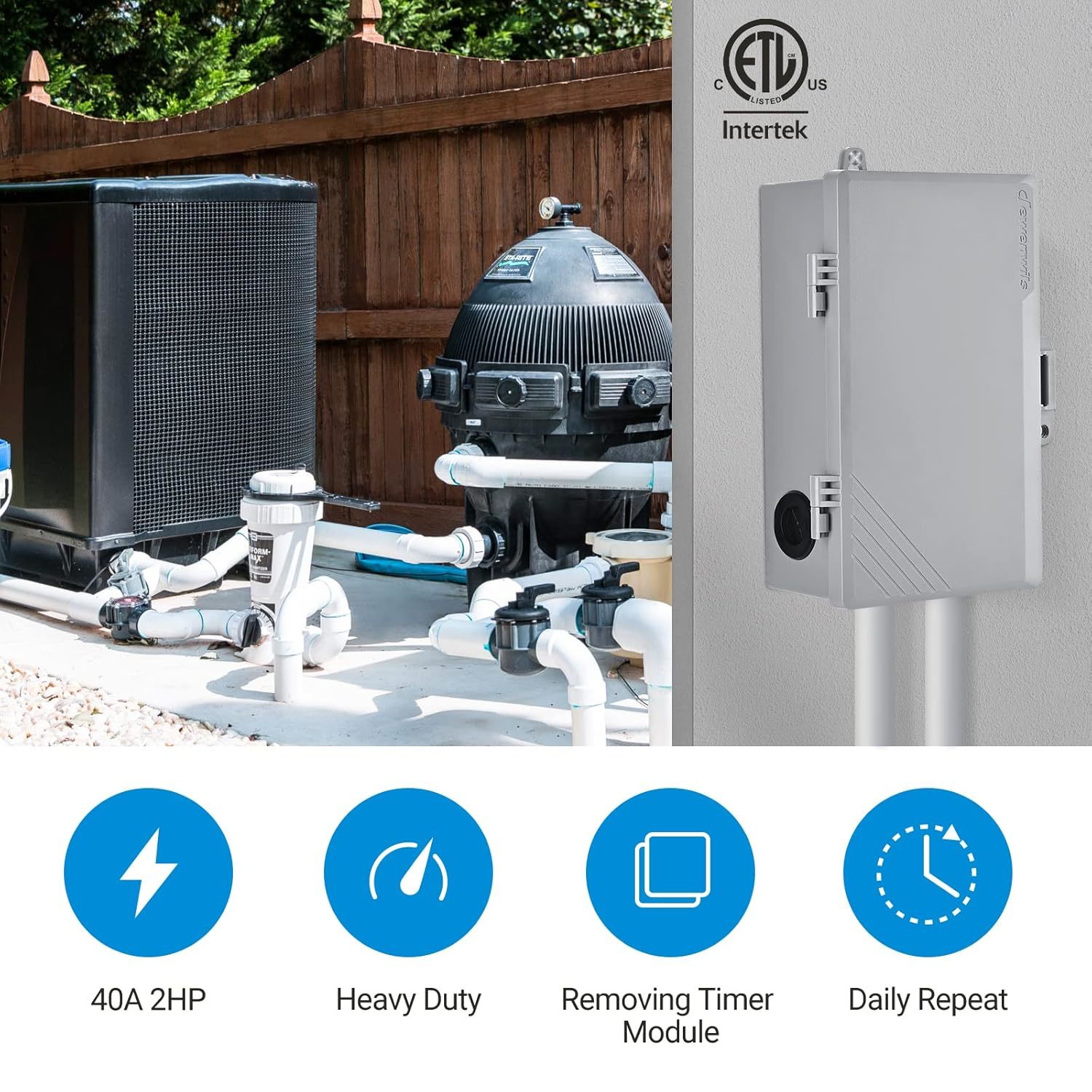

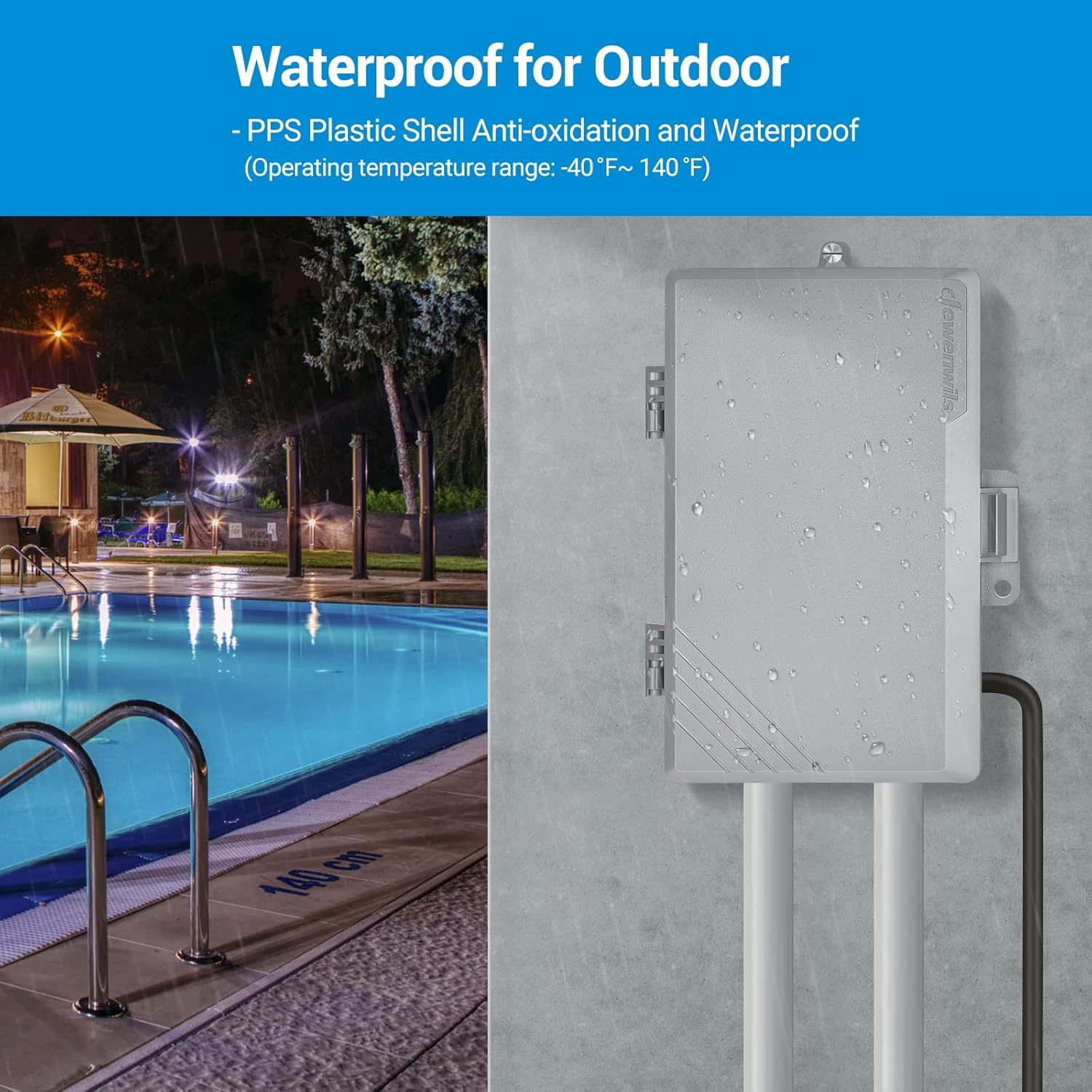

About this item HIGH POWER LOAD - Max 40 Amp 120-277 VAC 2HP load, multi-volt (120Vac or 208-277Vac) operation from 120-277 VAC, ideal for outdoor/indoor heavy duty applications like water heaters,pool pumps,fountains,spa,mower, air conditioner and other equipment motors etc. It could control 1 device or 2 devices simultaneously OUTDOOR RATED - ETL listed, the waterproof and well-sealed plastic shell prevent rainwater and dust from flowing into the junction box along the aperture. The operation temperature is from -40?to 140 ?. Thinner box is designed for space saving purposes DAILY REPEAT TIMER - Mechanical timer system, up to 96 On/Off settings within 24-hour period, program your devices to turn on/off in 15-minute intervals, turning dial clockwise until the arrow indicates to current time; push the pins out for desired periods of time and then push the manual switch to "Clock" position, or override the timer to always ON mode by pushing the manual switch to "I" position EASY TO INSTALL - The timer module is removable, it could be disassociated from the box to provide enough space and convenience for wiring and settings; the wiring holes have 2 sizes( 1/2'' 3/4’’) to choose, while the wiring caps also included for easy installation The installation and wiring of different loads are shown in the instruction manual › See more product details *Note: Pins indicated by the arrow can not be push out, rotate the dial to make it work. DEWENWILS is a professional manufacturer specializing in Home Improvement, Consumer Electronics and Outdoor Equipment. Our primary aim was to provide you and other valuable members with higher quality products. A satisfying shopping experience is amongst our top priorities. Turn your heavy-duty home devices like water heaters, pool pumps, fountains, spa, mower, air conditioner, other equipment motors, etc. with the heavy-duty mechanical timer switch to make them ON/OFF as you hope. 1. Set the current time: Turning the dial clockwise until the arrow indicates the current time. 2. Begin with all pins in the inner ring. Push the pins out for the duration you want the timer ON. Pins in the outer ring represent ON and the inner ring represents OFF. 3. Push the manual override switch to the “CLOCK ” position on the downside of the mechanical dial. You may override the operation of the timer by setting the switch to the “I” position, the power supply will always be ON. You may override the operation of the timer by setting the switch to the “O” position, the power supply will always be OFF. 4. Make sure the electrical device is ON state so the timer box can control it to work properly. 5. If blackout, reset the present time as indicated above. Note: Timer Box is capable of being configured for 120 VAC, 240VAC or 277VAC.
