AVR 5 to 7 KW ,2 x Carbon Brush Generator and 50 similar items

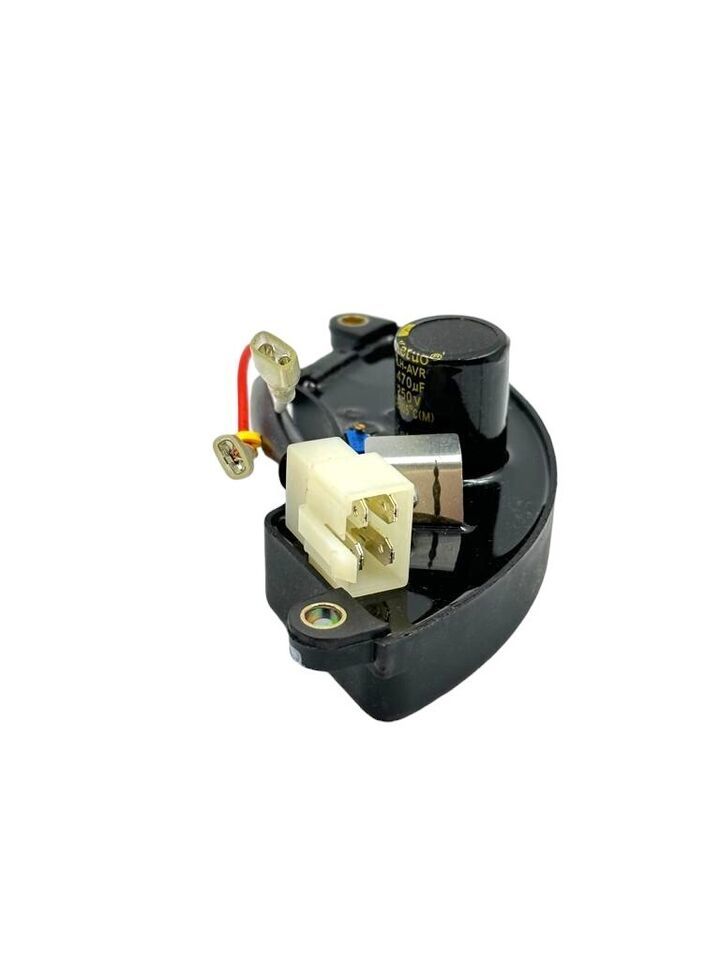

Lihua, Yamamato 5-7 KW Auto Voltage Regulator ISO 9002 CE Support 5 KW to 7 KW 3 Phases Dimensions Length 6 inches approximately, Width 2 inches approximately All AVRS have a tiny screw on it to adjust required voltage 2 Pcs Carbon Brush Set Description High quality assembly Carbon Brush for Brush Alternator/Generator,which used together with an AVR. It fits the dominating Honda Yamaha and Subaru portable gasoline brush generators and all China-made portable gasoline, diesel brush generators , 5Kw to 7Kw generator equipped with 168FA (5.5HP),168FB (6.5HP) and 170F(7HP) gasoline engine It also fits for Kipor, Suntom, Marksman, Kama, Mortox and similar models, petrol and Diesel Generators made by china too. The main causes of damage of automatic voltage regulator (AVR) AVR circuit is composed of rectifier main circuit, voltage detection circuit and comparison and control circuit; excluding the possibility that the damage is caused by the quality problems of the electric components, the working frequency of the main circuit and comparison and control circuit changes most among the whole AVR circuit. And the rectifier bridge in the main circuit and the transistor in the comparison circuit change even more frequently, and their damage proportion accounts for more than 90% of the whole AVR damage rate. AVR is non-dismantle components, and if it is damaged, it needs to be replaced. Therefore, we mainly analyze the reason that causes the damage of AVR in the generator and to avoid AVR damage as much as possible is the most important. The service life of AVR can be increased if it is used properly. (1)If the voltage of the engine is more stable, the change in AVR is less frequent; if the switch motion of transistor in comparison circuit is gentler, the AVR damage probability rate is less; (2) If the output load is relatively stable, the change in AVR is less frequent, and if the switch motion of transistor in comparison circuit is gentler, the AVR damage probability rate is less; (3)If the rotational speed of the engine is more stable, the oscillatory surge that currency variance causes to AVR is less; (4)Frequent ?idle running?, overload running and great difference of load are the main causes of AVR damage.
