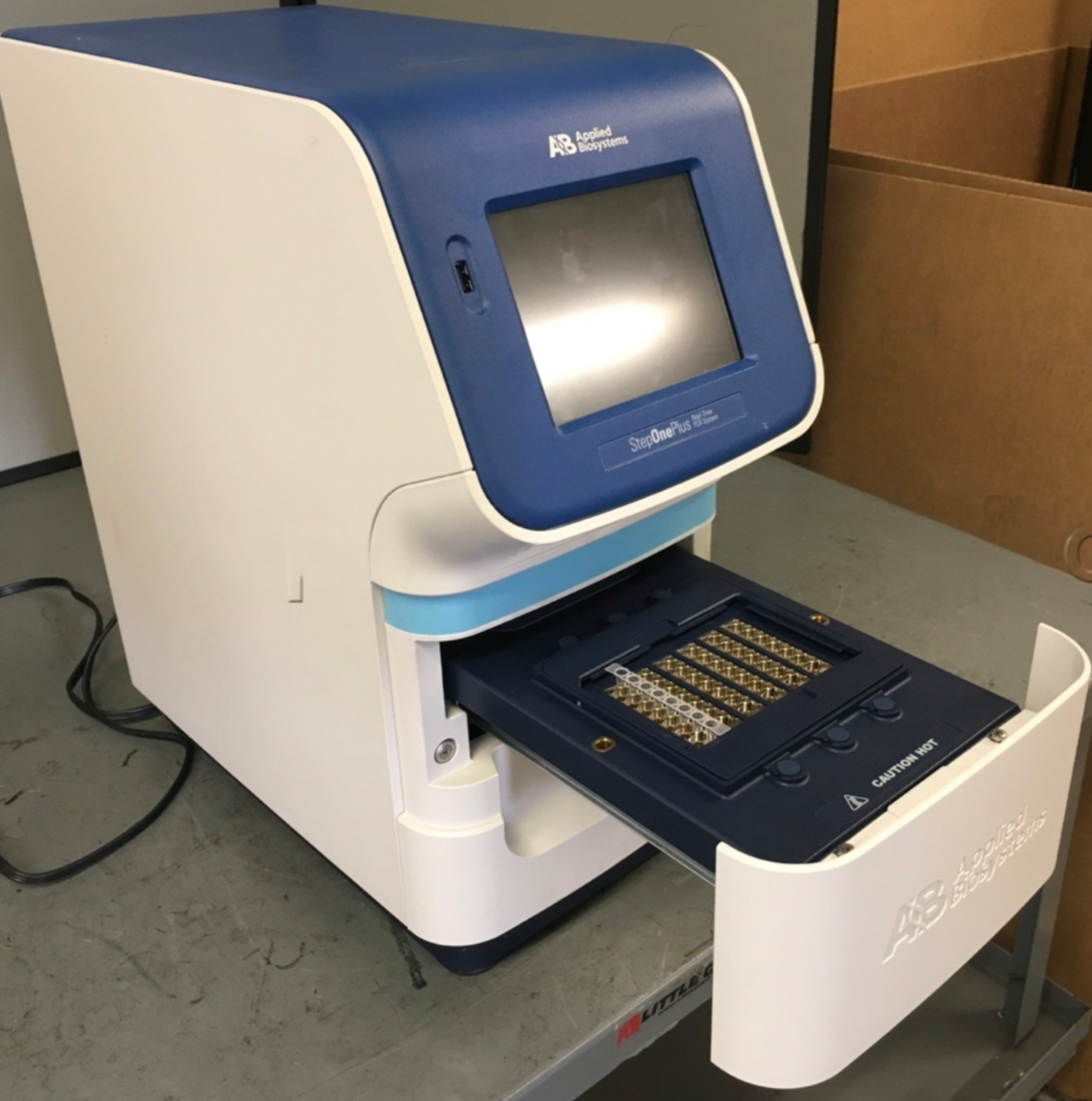

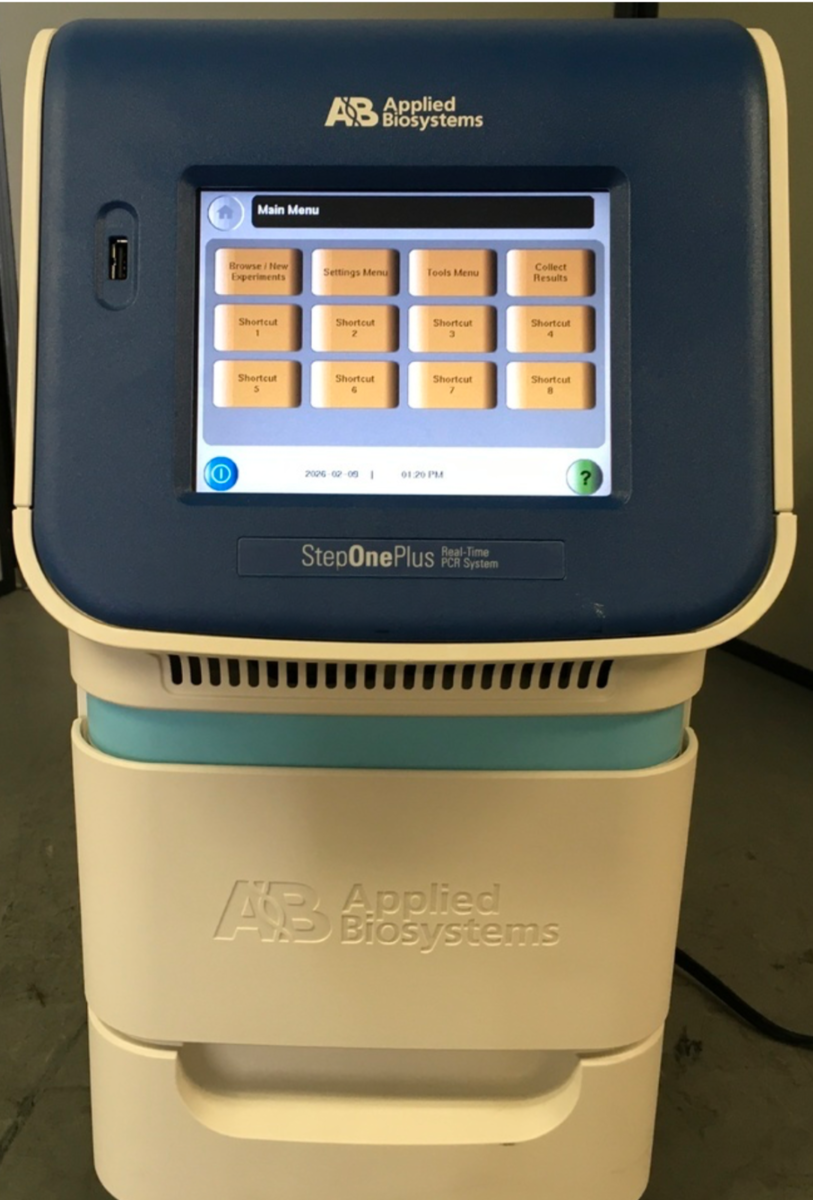

Applied BioSystems StepOnePlus Real-Time PCR System Model: 4376592 USED, Pulled out from working source. No accessories included. Power Cord only Specifications: Manufacturer Applied Biosystems Product line Step OnePlus Ref. No. 4376592 Serial No. 272003861 Mfg. date 2010 10 Format 96-well plate, 8-tube strips, 0.1ml tubes Capacity 96 x 0.1 ml tubes, 12 x 8-tube strips, 1 x 96-well plate Sample ramp rate Fast mode: 2.2C/s, Standard mode: 1.6C/s Temperature range 4 to 100C Thermal accuracy 0.25C (35C to 95C) of display temperature Sensitivity 1 copy Reaction volume range 10-30µl (Standard curve experiments: 40µl in Standard mode is validated Dynamic range Linear dynamic range greater than 9 log units (detection) High-throughput compatibility Multiplexing Passive reference dye ROX (separate tube), No ROX, ROX (pre-mixed) Calibrated dye VIC, SYBR Green I, ROX, JOE, NED, FAM, TAMRA Detection method SYBR, Primer-Probe Detection Optics 4 emission filters, Blue LED excitation source, photodiode Reaction speed Fast, Standard Run time 2 hrs./run (Standard mode), 40 min/run (Fast mode) Thermal cycling system Peltier-based system Display type LCD touchscreen Power rating 120V, 50/60Hz, 900W Dimensions (W x D x H) 9.7 x 19 x 20.2 in Weight 52 Lbs. (24 kg)
